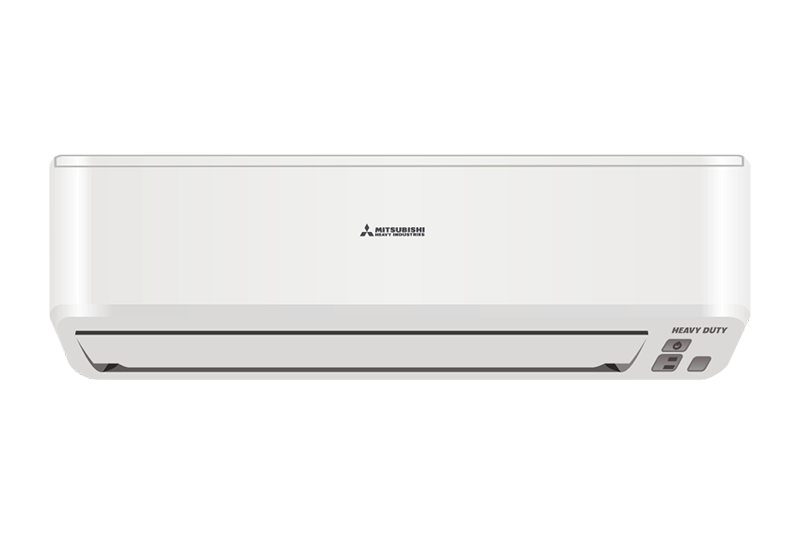

MODEL: SRK 12 CR-S6 TON: 1.0
- HI- WALL MOUNTED, HEAVY DUTY
- ECO SMART HEAVY DUTY AC
- REFRIGERANT: R410A
- COOLING ONLY
- MODEL: SRK 12 CR-S6
- TON: 1.0
Eco Smart Heavy Duty AC

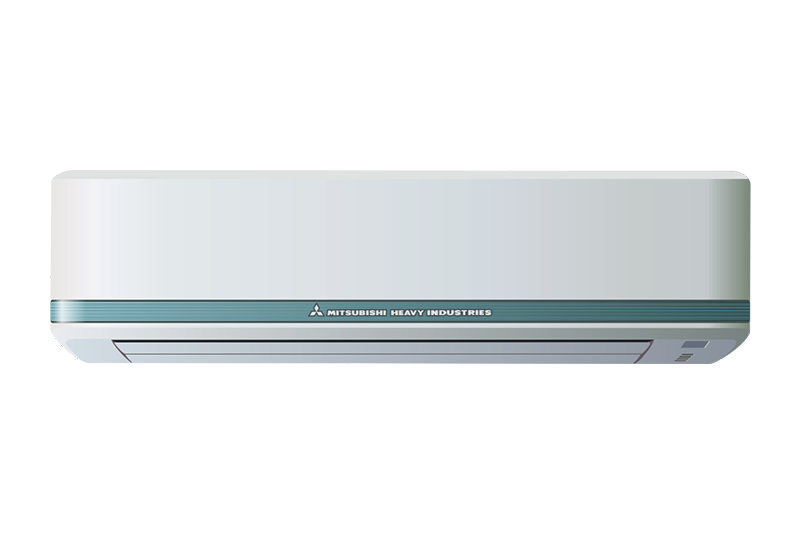

MODEL: SRK 18 CS-S6 TON: 1.5
- HI- WALL MOUNTED, HEAVY DUTY
- ECO SMART HEAVY DUTY AC
- REFRIGERANT: R410A
- COOLING ONLY
- MODEL: SRK 18 CS-S6
- TON: 1.5

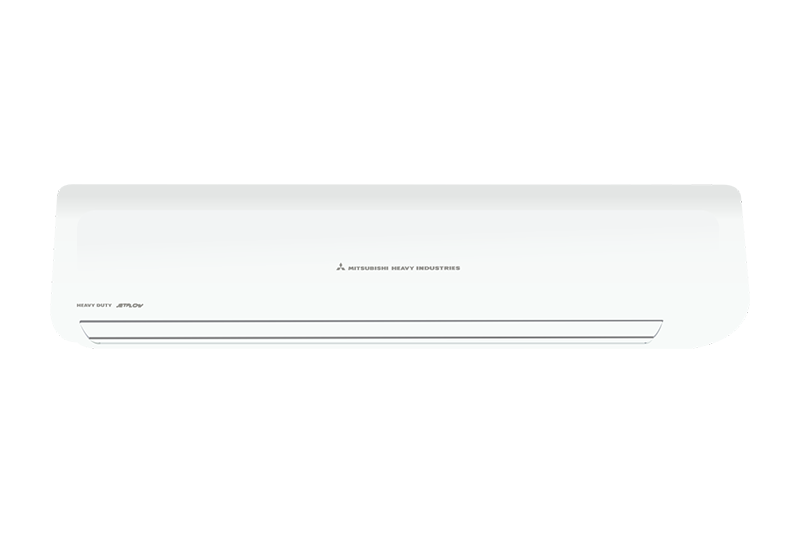

MODEL: SRK 24 CSS-S6 TON: 2.0
- HI- WALL MOUNTED, HEAVY DUTY
- ECO SMART HEAVY DUTY AC
- REFRIGERANT: R410A
- COOLING ONLY
- MODEL: SRK 24 CSS-S6
- TON: 2.0
ECO SMART HEAVY DUTY AIRCONDITIONER GIVES 1.5 TIMES BIGGER AREA COVERAGE COMPARED TO CONVENTIONAL AC & STILL GIVES ELECTRICITY SAVING UP TO 47%*
FEATURES
ECO SMART HEAVY DUTY AIRCONDITIONER Presenting India’s Highest Energy Saving 1.0 Ton Eco Smart Duty AC With R 410 A Refrigerant & Maximum 3.41* EER
| SPECIFICATIONS |
ECO SMART – HEAVY DUTY AC (R410A)
|
||||
|
Unit
|
SRK12CR-S6
|
SRK18CS-S6
|
SRK24CS-S6
|
||
| MODEL |
Indoor Unit
|
SRK12CR-S6
|
SRK18CS-S6
|
SRK24CS-S6
|
|
|
Outdoor Unit
|
SRC12CR-S6
|
SRC18CS-S6
|
SRC24CS-S6
|
||
| BEE Star Rating |
3 STAR
|
3 STAR
|
4 STAR
|
||
| Refrigerant Control & Expansion |
Dual Capillary Expansion
|
||||
| Compressor Type |
Super Tropical – Return Cooled Rotary
|
||||
| Power Source |
1 Phase, 220 / 230 V, 50Hz
|
||||
| Maximum Cooling Capacity * |
Ton
|
1.0
|
1.5
|
2.0
|
|
|
Watts
|
3810
|
5569
|
7400
|
||
|
BTU/h
|
13000
|
19000
|
25248
|
||
| Maximum EER / COP * |
W/w
|
3.38
|
3.41
|
3.94
|
|
| BEE Rated Cooling Capacity |
Ton
|
1.0
|
1.5
|
2.0
|
|
|
W
|
3500
|
5280
|
7300
|
||
|
BTU/h
|
12000
|
18015
|
24907
|
||
| Input Power ** |
watts
|
850 ~ 1065
|
1400 ~ 1615
|
1880 ~ 2180
|
|
| BEE Rated EER / COP |
W/w
|
3.29
|
3.27
|
3.35
|
|
| Current (Minimum ~ Maximum) |
A
|
4.0 ~ 5.0
|
6.5 ~ 7.1
|
8.5 ~ 9.5
|
|
| Dimension (H x W x D) |
Indoor Unit
|
mm
|
262 x 769 x 210
|
309 x 890 x 251
|
339 x 1197 x 262
|
|
Outdoor Unit
|
mm
|
595 x 780 (+62) x 290
|
640 x 850 (+65) x 290
|
||
| Weight |
Indoor Unit
|
Kgs
|
8.5
|
14
|
17
|
|
Outdoor Unit
|
Kgs
|
31
|
40
|
47
|
|
| Air Flow (CMH) |
Indoor Unit
|
M3/hr
|
700
|
1050
|
1300
|
| Long Reach Air Flow Upto |
Indoor Unit
|
Feet
|
15
|
40
|
56
|
| Self Diagnosis Function |
Indoor Unit
|
Yes
|
|||
| Sound Level (H/M/L) |
Indoor Unit
|
dB
|
36 / 32 / 29
|
45 / 43 / 41
|
46 / 42 / 39
|
| Louver Swing |
Indoor Unit
|
2D
|
|||
| Special Filter |
Indoor Unit
|
Anti Bacterial
|
|||
| Blower Fan |
Indoor Unit
|
Non Anti -Micro Bial
|
|||
| DC Fan Motor Speed |
Indoor Unit
|
Auto / Powerful / high / Med / Low
|
|||
| Refrigerant |
R410A
|
||||
| Refrigerant Injection in Coil |
Indoor Unit
|
5 Point – Multi Port
|
|||
| Refrigerant Piping |
Liquid Line
|
mm
|
6.35 ( 1/4″ )
|
6.35 ( 1/4″ )
|
|
|
GasLine
|
mm
|
12.7( 1/2″ )
|
15.88( 5/8″ )
|
||
| Main Power Supply to |
Outdoor Unit
|
2.5 mm2 x 3 cores (earthing cable)
|
|||
| Connecting Wiring |
B/w IDU & ODU
|
1.5 mm2 x 4 cores (earthing cable)
|
|||
| Area Coverage *** |
Sq.Feet
|
129 ~ 172
|
172 ~ 225
|
200 ~ 300
|
|
